Waveplate
High resistance wave plate
The waveplates are specially coated (e.g.excellent laser resistant) with our background technology of UV, visible and near IR.
In addition, it enables to fabricate a high laser damage optical attenuator, by using a combination of 1/2 waveplate and or PBS with high laser damage threshold coating.
Further to the above, zero-order waveplates, custom-made products with different wavelengths and dimensions, and mounted waveplates are also available.
Key features
- High laser damage threshold
- ≧10J/cm2 ＠1064nm
- Attenuator can be fabricate in combination with PBS
Specification examples
1/2Waveplate (Multi-order)
| Model No. | Mount | Wavelength | Damage threshold （Typical） |
|---|---|---|---|
| KWH266-15 | No mount | 266nm | ＞2J/cm² |
| KWH266-25 | |||
| KWH266-25MT | Mount | ||
| KWH266-30MT | |||
| KWH355-15 | No mount | 355nm | ＞5J/cm² |
| KWH355-25 | |||
| KWH355-25MT | Mount | ||
| KWH355-30MT | |||
| KWH532-15 | No mount | 532nm | ＞8J/cm² |
| KWH532-25 | |||
| KWH532-25MT | Mount | ||
| KWH532-30MT | |||
| KWH1064-15 | No mount | 1064nm | ＞10J/cm² |
| KWH1064-25 | |||
| KWH1064-25MT | Mount | ||
| KWH1064-30MT |
| Common specifications | |
| Waveplate | |
| Material | Crystalline quartz |
| Diameter tolerance | +0/-0.2mm |
| Thickness | 0.3mm |
| Retardation tolerance | ±λ/200＠23±2℃ |
| Surface quality（S-D) | 10-5（MIL-PRF-13830B) |
| Transmitted wavefront distortion | λ/10（λ＝633nm） |
| Parallelism | ≦2arcseconds |
| Antireflection coating | R≦0.2%/surface |
| Mount | |
| Diameter tolerance | ±0.1mm |
| Thickness tolerance | ±0.1mm |
Catalog Download
1/4Waveplate(Multi order)
Please replace "KWH" in the model number of 1/2 waveplate with "KWQ".
Dimensions

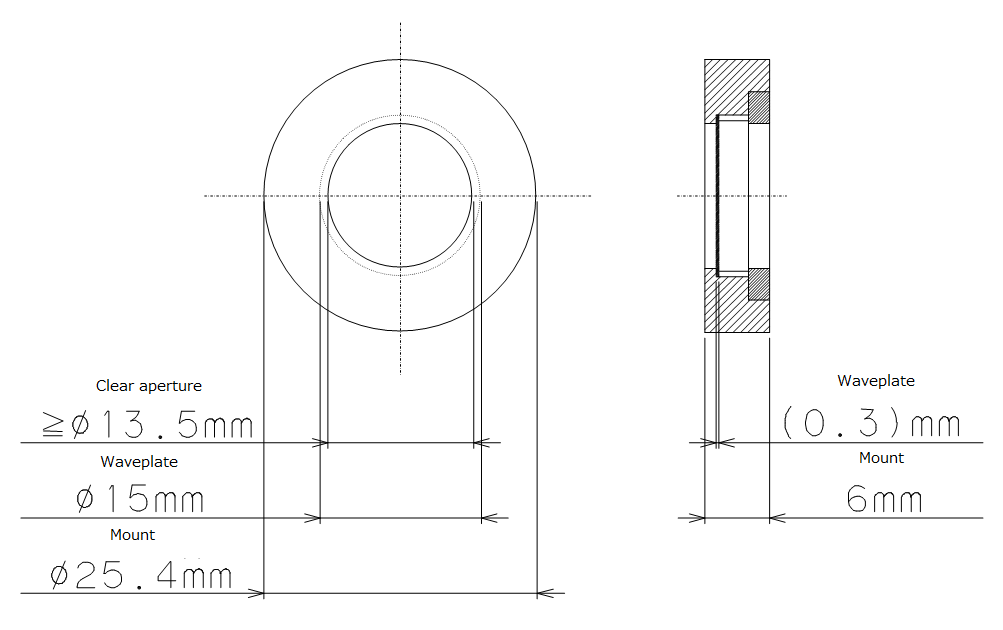

■KWH***-15、KWH***-25MT
■KWH***-25、KWH***-30MT
